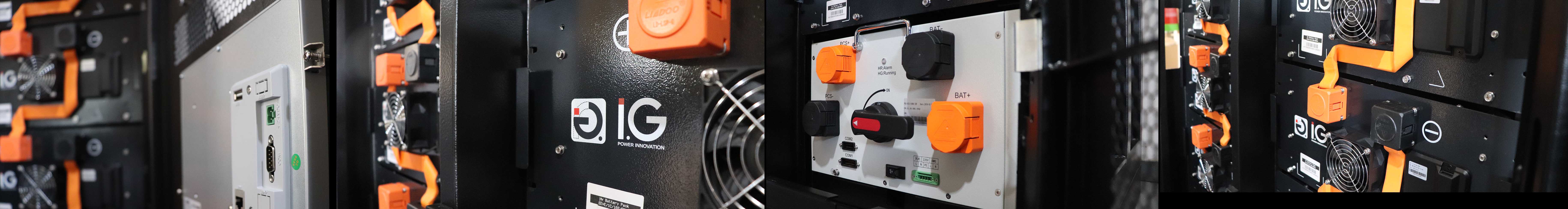

Giga Rack Battery
Using trusted LifePO 4 (LFP) cell technology the Giga Rack offers a full 143.36 Kw (280 A) sustained output per unit. The Giga Rack is designed to provide commercial and industrial users with more than 6000 cycles at 90% depth of discharge (DoD) and comes fully equipped with unrivaled monitoring capability.
The Giga Rack boasts a modular rack design, allowing for client customization. The battery can be installed into a full containerized solution or into a substation room, as part of a complete turnkey solution. The solution can be used as part of peak-shaving or as an off-grid solution
High Voltage
The Giga-Rack has been designed to represent the next generation of commercial and industrial lithium iron phosphate batteries
Long Lifespan
The Giga-Rack has been designed to represent the next generation of commercial and industrial lithium iron phosphate batteries
Safe & Reliable
The Giga-Rack has been designed to represent the next generation of commercial and industrial lithium iron phosphate batteries
Up-to 2.4 MWH
The Giga-Rack has been designed to represent the next generation of commercial and industrial lithium iron phosphate batteries
| Giga Rack | Giga 114 | Giga 129 | Giga 143 | Giga 157 | Giga 172 | Giga 186 | Giga 200 | Giga 215 |
|---|---|---|---|---|---|---|---|---|
| Cell Type | Lithium-Ion Phosphate (LiFePO4) battery | |||||||
| Nominal Capacity [Ah] |
280 | |||||||
| Single Module Nominal Voltage [V] |
51.2 | |||||||
| All packs in series | ||||||||
| Weight [Kg] | 1152.4 | 1259.4 | 1401.2 | 1508.2 | 1715.1 | 1822.1 | 1929.1 | 2088.3 |
| No. of Packs | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
| Nominal Voltage[V] | 409.6 | 460.8 | 512 | 563.2 | 614.4 | 665.5 | 716.8 | 768 |
| Voltage Range[V] | 358.4 – 454.4 | 403.2 – 511.2 | 448 – 568 | 492.8 – 624.8 | 537.6 – 681.6 | 582.4 – 738.4 | 627.2 – 795.2 | 672 – 852 |
| Max. Charge/Discharge Current (cont.) [A] |
200 | |||||||
| Rated Capacity [kWh] | 114.6 | 129 | 143.3 | 157.6 | 172 | 186.3 | 200.7 | 215 |
| Usable Capacity @ 80% DoD [kWh] |
91.7 | 103.2 | 114.6 | 126.1 | 137.6 | 149 | 160.5 | 172 |
| System Architecture (per rack) |
All packs in series and all racks in parallel | |||||||
| *Max Possible Rated Parallel Capacity (32parallel racks)[MWh] |
3.64 | 4.12 | 4.57 | 5.02 | 5.50 | 5.95 | 6.40 | 6.88 |
| *Max Possible Rated Parallel Charge/Discharge Current(Cont.)[A] |
6400 | |||||||
| Operating Temperature of Cells |
Charge: 0~55 ºC / Discharge: -10~55 ºC | |||||||
| Protection Class | IP20 - No solid ingress and near vertical water droplets (containerised) | |||||||
| Transport | UN3480, CE | |||||||
| Communication | Modbus, RS232, CAN Bus, TCP/IP | |||||||
| Stacking | Floor standing, rack mounted design | |||||||
| Warranty | 10 Years (6000 cycles) @ 0°C to 40°C ambient | |||||||
Flexible
- Modular Design. Easy to install and maintain
- Scalable up to 6.8MWh
- Flexible voltage range
Compatible
- Compatible with all major HV inverters; Atess, Megarevo, Solis, Deye, SunSynk and Sinexcel
- Compatible with energy management systems
Robust
- Safe & reliable operation with 3 level BMS architecture
- Advanced thermal management
Compliance
- Product: IEC, MSDS compliant
- Cells: IEC, UL, UN [EVE & CATL]
